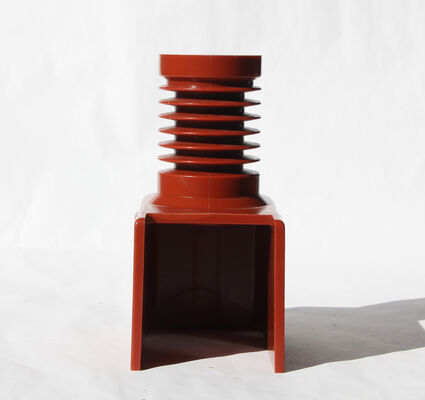

630A 10kV Electric Epoxy Resin Medium Voltage Support Insulators with Disconnecting Switch
제품 상세 정보
| 재료 | 에폭시 수지 | 색상 | 빨간색 |
|---|---|---|---|
| 정격 전압 | 10kV | 연면거리 | 240mm |
| 굴곡강도 | 8kN | 현재의 | 630A |
제품 설명
630A 10kV Electric Epoxy Resin Medium Voltage Support Insulators with Disconnecting Switch
1. We are specialty on epoxy resin medium voltage and high voltage components, such as 10KV, 24 KV and 40.5KV Circuit Breaker , Load breaker switch , Disconnecting Switch , Epoxy resin switchgear bushing , contactor box , insulators and transformer . 630A, 1250 A ,2500A , 3150A and 4000A contact box , club contact , fix contact, arm contact and jaw contact . 630A and 1250A VS1 circuit breaker . 630A and 1250A ZN85-40.5 circuit breaker . 12KV and 24KV earth switch. KYN28A-12 and KYN61 high voltage switchgear components .
2. The pressure molding machine of epoxy resin adopts PTL C, which is more humane, and has the following characteristics in comparison with the domestic products: The 10-year-old model has been lengthened from 3.2 meters to 3.4 meters at the moment, optimizing the space available for monopolists.2, 3 kinds of whole machine can be vertical, horizontal tilt. After opening the die, close the end of the motor press twist, monopolist can enter the machine to take products, liquidation mold.
| Item | Technical data | ||||||||||||
| Rated voltage (KV) | 7.2 | 12 | 24 | ||||||||||
| Rated frequency(Hz) | 50 | ||||||||||||
| Insulator(capacity) | insulating | Frequency withstand voltage 5 min (KV) | 32 | 42 | 68 | 100 | |||||||
| Frequency withstand voltage 1 min (V) | 2000 | ||||||||||||
| Lighting impulse withstand voltage (KV) | 60 | 75 | 125 | ||||||||||
| Local discharge (pc) | ≤10 | ||||||||||||
| Dispute bend (N) | ≥10000 | ||||||||||||
| Creepage Distance | 280mm | ||||||||||||
