24kv Casting Resin Switch Cabinet Through Wall Bushing for Single Copper Bus-Bar
무료샘플과 쿠폰을 위해 나와 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 재료 | 에포크시 樹脂/출금 樹脂 | 색상 | 빨간색 |
|---|---|---|---|
| 정격전압 | 24kV | 주파수 전압 | 68kV |
| 연면 거리 | 400mm | 하이그스 | 280mm |
| 힘 | 10kn | ||
| 강조하다 | 24kv epoxy resin bushing,casting resin switch cabinet bushing,single copper bus-bar through wall bushing |
||
제품 설명

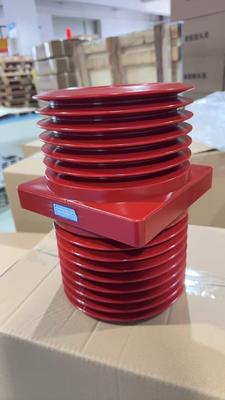

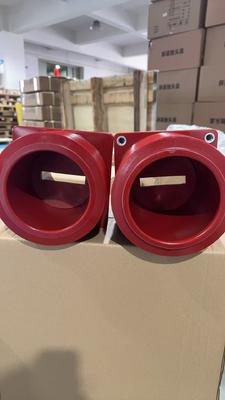

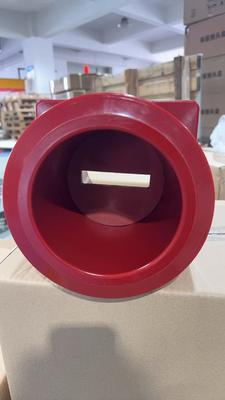

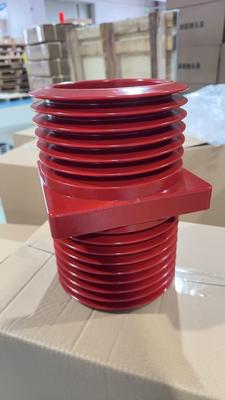

24kv Casting Resin Switch Cabinet Through Wall Bushing for Single Copper Bus-Bar
The casing can be divided into five types according to the place of use: indoor common type, outdoor common type, outdoor type, outdoor type, outdoor-indoor high prototype and outdoor type.
The common type is generally suitable for the installation site within 1000 M above sea level.
The common type of outdoor home is generally suitable for the area with an installation site not exceeding 1000M above sea level, but the installation site should be a no-obvious area.
The outdoor indoor anti-fouling type is suitable for installation site not exceeding 1000M above sea level. For severe and heavy fouling area, 63kV oil paper capacitive perforating wall casing can be used.
The outdoor high prototype is suitable for the installation site below 3000 M.
An outdoor interior plateau anti-fouling type is suitable for the installation of the site below 3000m above sea level in the filthy area.
The casing can be divided into three types: aluminum conductor, copper conductor and non conductor(busbar type) according to the conductor material used .
| Current | Bus-bar |
| 630A | 90*20 |
| 1250A | 135*25 |
