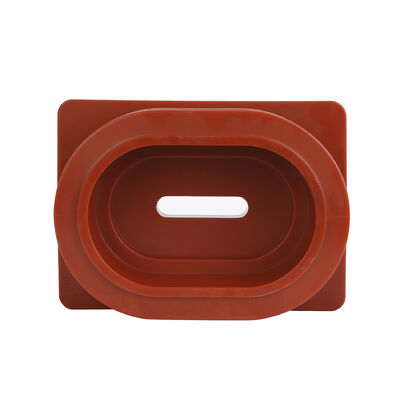

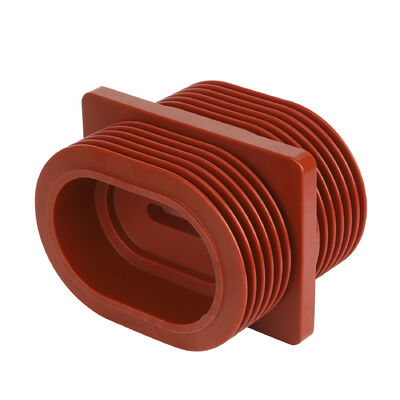

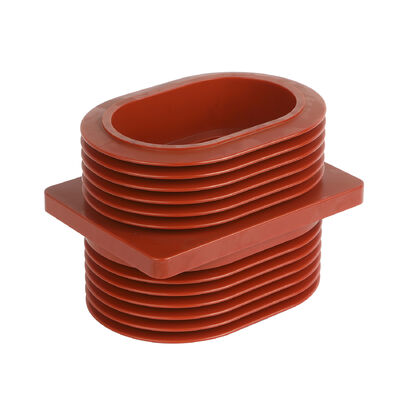

24kV Epoxy Resin Wall Bushing Cross with Copper Busbar in Medium-Voltage Cabinet

24kV Epoxy Resin Wall Bushing Cross with Copper Busbar in Medium-Voltage Cabinet

The casing can be divided into five types according to the place of use: indoor common type, outdoor common type, outdoor type, outdoor type, outdoor-indoor high prototype and outdoor type.
The common type is generally suitable for the installation site within 1000 M above sea level.
The common type of outdoor home is generally suitable for the area with an installation site not exceeding 1000M above sea level, but the installation site should be a no-obvious area.
The outdoor indoor anti-fouling type is suitable for installation site not exceeding 1000M above sea level. For severe and heavy fouling area, 63kV oil paper capacitive perforating wall casing can be used.
The outdoor high prototype is suitable for the installation site below 3000 M.
An outdoor interior plateau anti-fouling type is suitable for the installation of the site below 3000m above sea level in the filthy area.
The casing can be divided into three types: aluminum conductor, copper conductor and non conductor(busbar type) according to the conductor material used .
