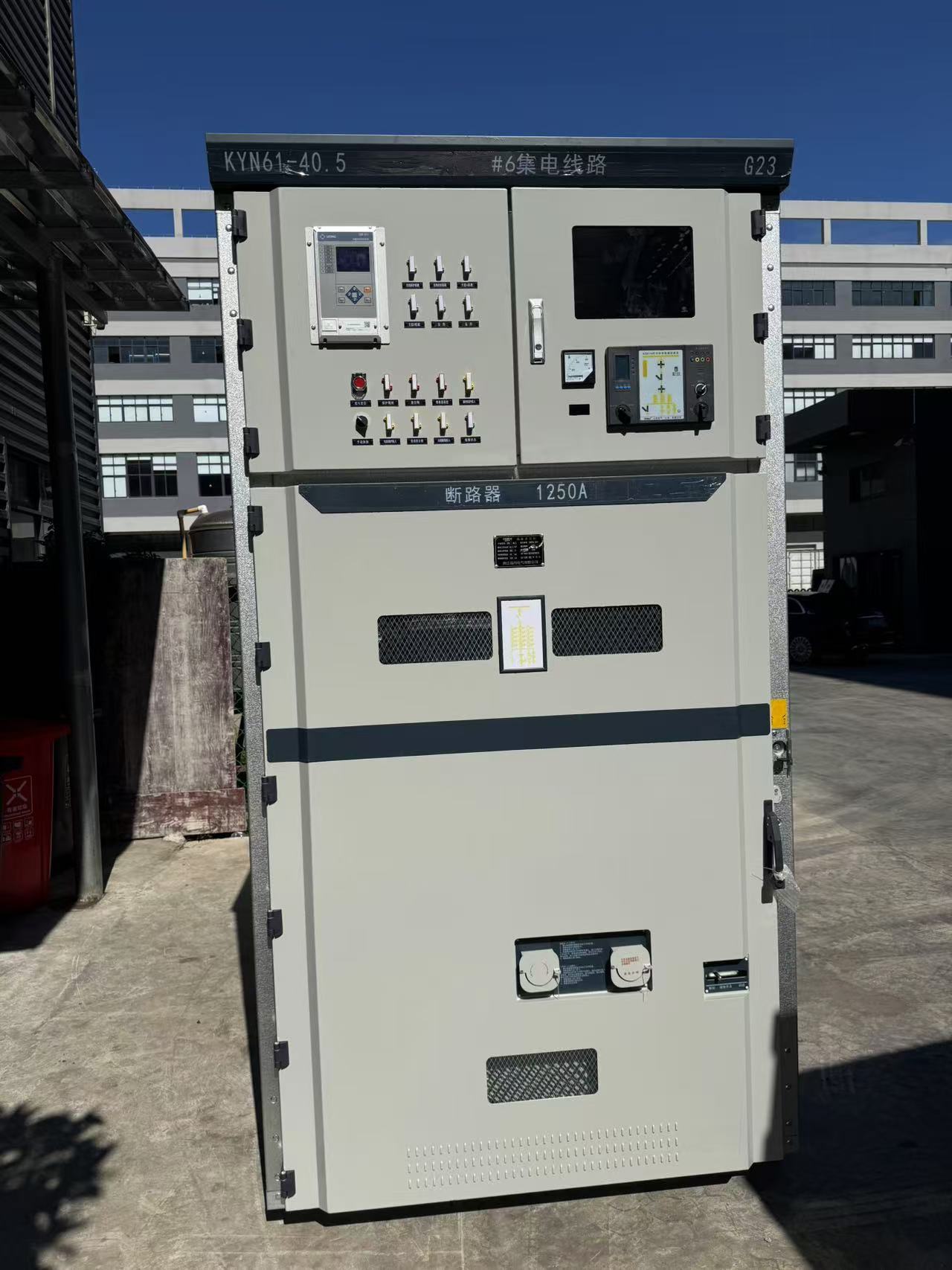

36kv Armored Removable AC Metal-Enclosed Indoor Switchgear with Circuit Breaker
무료샘플과 쿠폰을 위해 나와 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 제품명 | MV 고정배전반 | 정격 전압 | 36kV |
|---|---|---|---|
| 비율 주파수 | 50Hz | 평가된 메인 버스 바 경향 | 630,1250,1600,2000,2500,3150A,4000A |
| 단구간 내성 경향(4S) | 20,25,31.5,40 KV | 최대 내전류 (성수기.) | 50,63,80,100 KV |
| 평가된 짧은 드롭 아웃 경향 | 20,25,31.5,40 KV | 평가된 단락 회로는 (성수기)를 열고 줄입니다 | 50,63,80,100 KV |
제품 설명
36kv Armored Removable AC Metal-Enclosed Indoor Switchgear with Circuit Breaker
MV Fixed Switchgear General Introduction:
XGN66-12 box-type fixed metal enclosed switchgear is our factory to design, research and development from a new generation of complete sets of high-voltage electrical products, switchgear suitable for 3,6-12kv three-phase AC 50Hz single bus section of the indoor sets of devices As receiving and distribution of electric energy use, and has the circuit control, protection and detection capabilities.
The products absorb advanced foreign technology, in view of the existing switchgear in the operation of similar high accident rate and the large volume of such problems Designed and developed from. It is small, only the common switch cabinet, the circuit breaker with high reliability, good performance, five anti-interlock, reliable, and simple.
MV Fixed Switchgear Environmental Conditions:
1). use the maximum temperature does not exceed 40 degrees, the minimum Not more than -25 degrees
2). relative humidity: daily average of not more than 95%, the monthly average of no more than 90% of the altitude does not exceed 1000m (over time can consult the manufacturer)
3). no fire, explosion, heavy pollution, chemical corrosion and severe Shock sites.
MV Fixed Switchgear Technical parameters:
| Items | Unit | parameter | ||
| Rate voltage | kV | 12 | ||
| Rate frequency | Hz | 50 | ||
| Rated main bus bar current | A | 630 ,1250,1600,2000,2500 ,3150 | ||
| Rated branching bus bar current | A | 630 ,1250,1600,2000,2500 ,3150 | ||
| Short-time withstand current(4S) | kV | 20,25,31.5,40 | ||
| Peak withstand current(peak.) | kV | 50,63,80,100 | ||
| Rated short drop out current | kV | 20,25,31.5,40 | ||
| Rated short circuit open and cut(Peak) | kV | 50,63,80,100 | ||
| Rated insulation level | 1min power frequency withstand voltage |
ph-ph,ph-ground | kV | 25,30,42 |
| breaker gap | kV | 27,34,48 | ||
| Rated lighting impulse withstand voltage(Peak) | ph-ph,ph-ground | kV | 40,60,75 | |
| breaker gap | kV |
46,70,85 |
||
Switchgear Structure:
1. Switchgear is composed of cubicle and removable parts (so called trolley). The cubicle is separated into several functional compartments by metal sheet, including busbar compartment, circuit breaker compartment, cable compartment and low voltage

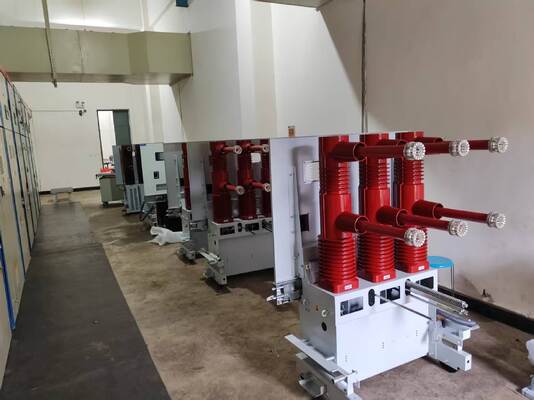

2. Switchgear removable parts can be equipped with VCB trolley, voltage transformer trolley, lightning arrester trolley and fuse trolley.
3. Pressure relief devices are installed above trolley compartment, busbar compartment and cable compartment. Special sealing ring on the door seals the panel door.
4. In case of faults inside the compartments resulting in arc, the pressure is going up inside the switchgear and the pressure relief equipped on the top will open automatically, to release pressure and high temperature gas. In this way, it can ensure the safety of operating staff and the switchgear.
