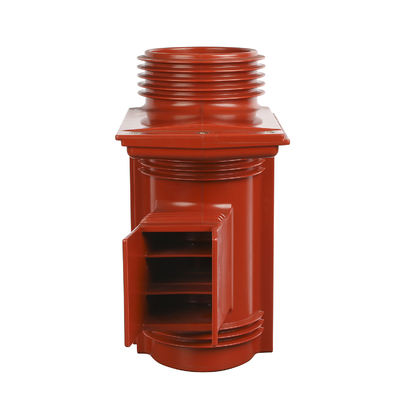

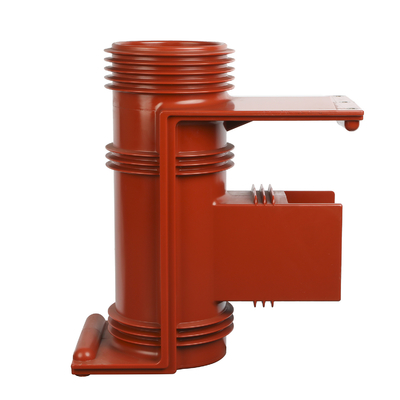

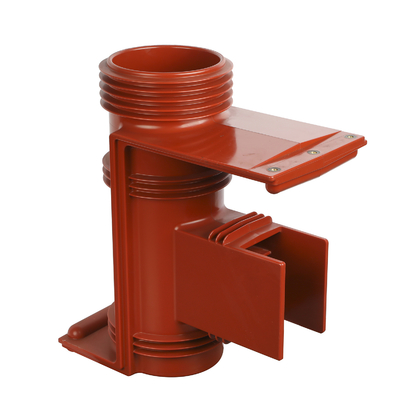

36kv 660mm Epoxy Resin V. T. Spout Bushing Insulator with Shiled Net for Fix Copper Busbar in Switchgear
| Place of Origin | WENZHOU |
|---|---|
| 브랜드 이름 | QIUPU |
| 인증 | IEC |
| Model Number | CTH3-40.5/660/sS |
| Minimum Order Quantity | 6 |
| Packaging Details | Cartons |
| Delivery Time | 7 Days |
| Payment Terms | T/T, Western Union |
| Supply Ability | 5000 PCS/Month |
무료샘플과 쿠폰을 위해 나와 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| Color | Red | Material | Epoxy Resin |
|---|---|---|---|
| Rate Voltage | 40.5kV | Frequency Voltage | 98 kV |
| Creepage Distance | 810mm | Flexural Strength | 12 kN |
| Current | 630A-4000A | Higth | 660MM |
제품 설명
Product advantages:
- APG(Automatic Pressure Gelation) technology for epoxy insulators, best choice!
- Premium epoxy resin, hardener and silicone powder, sufficient 3-speed mixing and vacuumization, eliminating bubbles
- Precise mold development, workers will strictly execute production technology requirement of solidifying time and curing time.
| Item | Name | Rated voltage (KV) | Rated frequency(Hz) | Frequency withstand voltage 5 min (KV) | Local discharge (pc) | Creep distance (mm) | Dispute bend (kN) | Lighting impulse withstand voltage (KV) |
| 1 | Insulators(140*320) | 40.5 | 50 | 98 | ≤10 | ＞810 | ≥10 | 185 |
| 2 | ||||||||
| 3 | Contactor box (1250A) | 12 | 50 | 45 | ≤10 | ＞240 | ≥8 | 80 |
| 4 | Contactor box (1600A) | 12 | 50 | 45 | ≤10 | ＞240 | ≥8 | 80 |
1. We are specialty on epoxy resin medium voltage and high voltage components, such as 10KV, 24 KV and 40.5KV Circuit Breaker , Load breaker switch , Disconnecting Switch , Epoxy resin switchgear bushing , contactor box , insulators and transformer . 630A, 1250 A ,2500A , 3150A and 4000A contact box , club contact , fix contact, arm contact and jaw contact . 630A and 1250A VS1 circuit breaker . 630A and 1250A ZN85-40.5 circuit breaker . 12KV and 24KV earth switch. KYN28A-12 and KYN61 high voltage switchgear components .
2. Especially applied to vacuum circuit breaker sealing pole column, complex, thin wall, multi-directional core extraction products are more advantageous.
3. Mainly used in systems below 1000 KVA Transformers. The ring net ark originally serves as the ring net connection, this is the ring net ark name reason. Because it is the use of the ring network, it only needs to be divided rated current, short circuit current division does not need it(do not understand please consider carefully). So the loop cabinet just needs a load switch, not a fuse.
